Automotive
bar

Made-to-order special parts. Custom tooling fee and lead time apply.


% Swell comparison in Automotive Fuels

ethanol-comparison1

A Type
GF
®
GLT
®
GFLT
®
FS
HNBR

FKM Type A
FKM GF
FKM GLT
FKM GFLT
Fluorosilicone
Hydrogenated Nitrile

Read more about FKM in Materials > Viton®


OEM Automotive O-Rings


OEM/Specification

Polymer

Compound ID

Duro

Color

Typical Temperature Range - deg C (F)

Audi (refer to Volkswagen 2.8.1 – A/T 70)

FKM

F95

60

Red

-22 / 250 (-8 / 482)

Audi (refer to Volkswagen 2.8.1 / TL52424)

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

BMW GS 93010 5516-FPM-70-M

FKM (GLT®)

F05

75

Blue

-40 to 250 (-40 to 482)

BMW GS 93010 5505-FPM-75-M, GF Type

FKM (GF® Type)

F86

75

Green

-22 / 250 (-8 / 482)

BMW GS 93010 5519-FMQ-75-M

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

BMW GS 93010 5518-HNBR-80-M

HNBR

H95

80

Black

-40 /150 (-40 / 302)

Daimler Chrysler MS-BZ105C, SAE 5120R1 Class 1

NBR

H77

70

Black

-34 / 125 (-30 / 257)

Daimler Chrysler MS-BZ623 Gr A

AEM (Vamac®)

M94

80

Black

-60 / 200 (-76 / 392)

Daimler Chrysler MS-BZ832, Grade A1

FKM

F80

60

Black

-25 / 250 (-13 / 482)

Daimler Chrysler MS-BZ832, Grade A3

FKM

F84

75

Black

-25 / 250 (-13 / 482)

Daimler Chrysler MS-BZ832, Grade A4

FKM

F33

80

Black

-22 / 250 (-8 / 482)

Daimler Chrysler MS-BZ832, Grade B2

FKM

F50

75

Black

-40 / 250 (-40 / 482)

Daimler Chrysler MS-BZ832, Grade B2

FKM

F69

70

Black

-40 / 250 (-40 / 482)

Daimler Chrysler MS-BZ832, Grade C2

FKM

F43

70

Black

-22 / 250 (-8 / 482)

Daimler Chrysler MS-BZ832, Grade F3

FKM

F77

75

Gray

-32 / 250 (-25 / 482)

Daimler Chrysler MS-BZ832, Grade F5

FKM

F31

80

Black

-40 / 250 (-40 / 482)

Daimler Chrysler MS-BZ832, Grade G3

FKM

F05

75

Blue

-40 / 250 (-40 / 482)

Daimler Chrysler MS-BZ832, Grade G4

FKM

F79

75

Black

-40 / 250 (-40 / 482)

Daimler Chrysler MS-BZ832, Grade G5

FKM

F85

85

Black

-40 / 250 (-40 / 482)

Daimler Chrysler BS-BB 40

FVMQ



45

Red

-60 / 200 (-76 / 392)

Delphi 2HK715A1-10B37B38EF31EO78F15

FKM

F81

75

Brown

-25 / 250 (-13 / 482)

Delphi 7HK915BLACK

FKM



90

Black

-40 / 250 (-40 / 482)

Delphi 7HK915BROWN

FKM



90

Brown

-22 / 250 (-8 / 482)

Delphi M54416

FKM

F84

75

Black

-25 / 250 (-13 / 482)

Delphi M54427

FKM

F31

80

Black

-40 / 250 (-40 / 482)

Delphi M54435

FKM



75

Black

-22 / 250 (-8 / 482)

Delphi M54444

FKM

F04

75

Blue

-22 / 250 (-8 / 482)

Delphi M54444

FKM

F84

75

Black

-25 / 250 (-13 / 482

Delphi M54453

FKM

F05

75

Blue

-40 / 250 (-40 / 482)

Delphi M54453

FKM

F79

75

Black

-40 / 250 (-40 / 482)

Delphi M54472

FKM

F85

85

Black

-40 / 250 (-40 / 482)

Delphi M54475

FKM



75

Brown

-22 / 250 (-8 / 482)

Delphi M54481

FKM



80

Red

-25 / 250 (-13 / 480)

Delphi M54489

FKM



75

Brown

-25 / 250 (-13 / 480)

Delphi M54498

FKM

F07

70

Black

-40 / 250 (-40 / 482)

Delphi M54498

FKM



70

Green

-40 / 250 (-40 / 480)

Delphi/Saginaw 7846478

FKM

F57

70

Green

-25 / 250 (-13 to 482)

Delphi M54106

NBR



60

Black

-34 / 125 (-30 / 257)

Ford ESA-M9P7-A, FKM/FVMQ Blend

FKM/FVMQ Blend

F52

75

Brown

-32 / 200 (-25 to 392)

Ford ESW-M2D100-A

HNBR

H76

70

Black

-32 / 150 (-25 / 302)

Ford ESWM2D247 Type I

HNBR

M27

70

Black

-32 / 150 (-25 / 302)

Ford ESWM2D247 Type III, Internal Lube

HNBR

M29

75

Black

-34 / 150 (-30 / 302)

Ford WSA-M2D451-A2

HNBR

M30

75

Black

-32 / 150 (-25 / 302)

Ford WSA-M2D401-A5, GFLT Type

FKM (GFLT® Type)

F77

75

Gray

-32 / 250 (-25 / 482)

Ford WSA-M2D401-A5, GFLT Type

FKM (GFLT® Type)

F78

75

Black

-32 / 250 (-25 / 482)

Ford WSA-M2D401-A6

FVMQ

G17

75

Yellow

-60/200 (-76/302)

Ford WSA-M2D401-A6

FVMQ

L53

70

Orange

-60 / 200 (-76 / 392)

Ford WSA-M2D401-A8, GF Type (HF - high fuorine)

FKM (GF® Type)

F86

75

Green

-22 / 250 (-8 / 482)

Ford WSA-M2D451-A2

HNBR

M30

75

Black

-32 / 250 (-25 / 482)

GM/Opel 6268 & 6269M Type II

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

GM/Opel 6268 & 6269M Type III, GF Type (HF – high fluorine)

FKM (GF® Type)

F86

75

Green

-22 / 250 (-8 / 482)

GM/Opel 6268M Type I, FKM/FVMQ Blend

FKM/FVMQ Blend

F52

75

Brown

-32 / 200 (-25 to 392)

GM/Opel GM6268M Type II

FVMQ

L53

70

Orange

-60 / 200 (-76 / 392)

GM/Opel GM6268M Type IV

FKM

F99

65

Green

-22 to 250 (-8 to 482)

GM/Opel GM6269M Type I

FKM (GFLT® Type)

F78

75

Black

-32 / 250 (-25 / 482)

GM/Opel GM6269M Type II

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

Jaguar (refer to Ford WSA-M2D401-A6)

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

Jaguar (refer to Ford WSA-M2D401-A8, GF Type (HF - high fluorine))

FKM (GF® Type)

F86

75

Green

-22 / 250 (-8 / 482)

John Deere JDM H4R

FKM

F105

90

Black

-25 / 250 (-13 / 482)

Land Rover (refer to Ford WSA-M2D401-A6)

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

Land Rover (refer to Ford WSA-M2D401-A8, GF Type (HF - high fluorine))

FKM (GF® Type)

F86

75

Green

-22 / 250 (-8 / 482)

Magneti Marelli FKM Type A1

FKM

F75

75

Black

-25 / 250 (-13 / 482)

Magneti Marelli FKM Type A2

FKM

F54

75

Black

-25 / 250 (-13 / 482)

Magneti Marelli FKM Type B

FKM

F47

75

Black

-25 / 250 (-13 / 482)

Magneti Marelli FKM Type C

FKM

F51

75

Black

-30 / 250 (-22 / 482)

Magneti Marelli FKM Type D

FKM

F79

75

Black

-40 / 250 (-40 / 482)

Magneti Marelli FKM Type E

FKM (GFLT® Type)

F78

75

Black

-32 / 250 (-25 / 482)

Magneti Marelli FKM Type F

FKM

F35

80

Black

-22 / 250 (-8 / 482)

Magneti Marelli FVMQ

FVMQ

L54

75

Yellow

-60 / 200 (-76 / 392)

Renault 03-10-100/--D / 34-04-815/--H

FKM (GF® Type)

F86

75

Green

-22 / 250 (-8 / 482)

Renault 03-10-100/--D / 34-04-815/--H

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

Renault 03-10-100/--D / 34-04-815/--H

FKM

F95

60

Red

-22 / 250 (-8 / 482)

Renault 03-50-000 Type 2

FKM

F75

75

Black

-25 / 250 (-13 / 482)

Volkswagen 2.8.1 – A/T 70

FKM

F95

60

Red

-22 / 250 (-8 / 482)

Volkswagen 2.8.1.A

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

Volvo (refer to Ford WSA-M2D401-A6)

FVMQ

G17

75

Yellow

-60 / 200 (-76 / 392)

Volvo (refer to Ford WSA-M2D401-A8, GF Type (HF - high fluorine))

FKM (GF® Type)

F86

75

Green

-22 / 250 (-8 / 482)

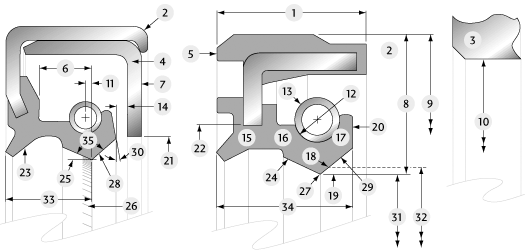

Oil Seals Profile

1

Seal Width

19

Inside Lip Angle

2

Metal Case (Outer)

20

Toe Face

3

Housing

21

Inside Case Inner Diameter

4

Inner Case

22

Outer Case Inner Diameter

5

Outside Face

23

Auxiliary (Dust) Lip

6

Lip Length

24

Outside Lip Surface

7

Inside Face

25

Outside Lip Angle

8

Radial Wall Dimension

26

Rib (Helix)

9

Seal Outer Diameter

27

Contact Line

10

Housing Bore Diameter

28

Static Lip

11

Spring Position (R-Value)

29

Inside Lip Surface

12

Spring Groove

30

Molded Toe Angle

13

Garter Spring

31

Spring Set Lip Diameter

14

Axial Clearance

32

Free Lip(Unsprung) Diameter

15

Heel Section

33

Contact Line Height

16

Flex Section

34

Lip Height

17

Spring Retainer Lip

35

Lip Angle

18

Head Section
