Plugs
bar
rubberplug

Custom Masking Tapes Available

Silicone Pull Plug (SPP)

Material:

Silicone

Durometer:

50A +/- 5

Temperature:

-50° to +600° F

Color:

Various

EPDM Pull Plug (EPP)

Material:

EPDM

Durometer:

45A +/- 5

Temperature:

-70° to +250° F

Color:

Various

SPP: Silicone Pull Plugs (Hardness: 50A Temperature: -50° to +600° F)

p6-pullplugs
cad-spp-bw

Part Number A(inch) B(inch) C(inch) D(inch) Bag Qty Color

SPP06

0.062

0.046

0.337

0.375

100

transparent

SPP07

0.067

0.047

0.61

0.625

100

pink

SPP08

0.073

0.046

0.59

0.612

100

light green

SPP09

0.091

0.052

0.625

0.625

100

yellow

SPP10

0.093

0.05

0.7

0.7

100

grey

SPP11

0.104

0.062

0.625

0.525

100

light blue

SPP11A

0.125

0.062

0.625

0.625

100

white

SPP14

0.13

0.093

1

1

100

transparent

SPP15

0.13

0.093

0.7

0.65

100

pink

SPP17

0.142

0.085

0.558

0.625

100

light green

SPP18

0.154

0.083

0.625

0.632

100

yellow

SPP20

0.156

0.062/ 0.083

0.75

0.625

50

grey

SPP22

0.162

0.096

0.581

0.625

50

light blue

SPP23

0.195

0.11

0.625

0.625

50

white

SPP30

0.218

0.13

1

1

50

transparent

SPP33

0.225

0.125

1

1

50

pink

SPP37

0.257

0.13

1

1

50

light green

SPP40

0.275

0.125

0.92

0.937

50

yellow

SPP40LS

0.275

0.146

2

2

50

white

SPP42

0.316

0.152

0.91

1

50

grey

SPP42A

0.333

0.251

1

0.757

50

light blue

SPP43

0.335

0.153

1

1

50

white

SPP50

0.35

0.193

0.925

0.881

50

transparent

SPP55

0.384

0.154

1

1

50

pink

SPP55LS

0.384

0.204

2

2

25

blue

SPP60

0.408

0.191

1

1.009

25

light green

SPP66

0.444

0.255

0.99

1

25

yellow

SPP67

0.445

0.255

1

1

25

grey

SPP70

0.472

0.243

1

1

25

light blue

SPP73

0.496

0.25

1

1

10

white

SPP73LS

0.496

0.263

2

2

10

light green

SPP77

0.51

0.256

0.956

1

10

transparent

SPP80

0.53

0.25

1

1

10

pink

SPP85

0.571

0.303

1

1

5

light green

SPP89

0.612

0.25

1

1

5

yellow

SPP89LS

0.612

0.325

2

2

5

transparent

SPP90

0.64

0.375

1

1

5

grey

SPP95

0.707

0.375

1.326

1.25

5

light blue

SPP95LS

0.707

0.375

2

2

5

green

SPP97

0.728

0.375

1.1

1.125

5

white

SPP100

0.77

0.375

0.927

1

5

transparent

SPP100LS

0.77

0.408

2

2

1

yellow

SPP105

0.807

0.428

1.25

1.25

1

pink

SPP110

0.888

0.372

1

1

1

light green

SPP120

1.02

0.375

0.97

1

1

yellow

SPP140

1.38

0.732

1.5

1.5

1

grey

<Back to Top>

TPS: Tapered Plug Silicone (Hardness: 50A Temperature: -50° to +600° F)

p7-plugs
cad-plugs-bw

Part Number A(inch) B(inch) C(inch) Bag Qty Color

TPS-1

0.031

0.125

0.625

100

transparent

TPS-6

0.047

0.216

1.5

100

transparent

TPS-3

0.063

0.125

0.625

100

light green

TPS-5S

0.063

0.188

0.625

100

green

TPS-50

0.063

0.188

0.75

100

pink

TPS-7

0.125

0.25

0.75

100

black

TPS-8

0.125

0.25

1

100

rusty

TPS-9

0.188

0.344

0.625

100

transparent

TPS-90

0.188

0.344

1

100

red

TPS-10

0.25

0.375

0.5

100

white

TPS-11

0.25

0.375

0.75

50

yellow

TPS-12

0.25

0.438

1

50

red

TPS-K65

0.313

0.5

0.875

50

transparent

TPS-13X

0.313

0.562

1

10

white

TPS-130

0.313

0.562

1.125

50

transparent

TPS-13

0.344

0.469

0.813

50

rusty

TPS-15

0.406

0.594

1

10

rusty

TPS-16

0.438

0.625

0.875

10

purple

TPS-170

0.438

0.687

1

10

pink

TPS-17

0.5

0.656

1

10

light

TPS-19

0.563

0.75

1

10

pink

TPS-21

0.625

0.781

1

10

black

TPS-210

0.625

0.8

0.625

10

transparent

TPS-23

0.719

0.938

1

10

transparent

TPS-21X

0.75

0.925

0.75

10

red

TPS-25

0.781

1

1

10

transparent

TPS-27

0.906

1.063

1

10

yellow

TPS-29

0.938

1.1

1

10

transparent

TPS-31

1.031

1.25

1

10

light

TPS-33

1.063

1.313

1

10

green

TPS-35

1.188

1.438

1

1

light

TPS-37

1.25

1.531

1

1

transparent

TPS-39

1.3

1.61

1

1

red

TPS-41

1.406

1.688

1

1

transparent

TPS-43

1.469

1.75

1

1

blue

TPS-45

1.5

1.813

1

1

rusty

TPS-47

1.625

1.969

1

1

red

TPS-49

1.75

2.063

1

1

rusty

TPS-51

1.875

2.203

1

1

rusty

TPS-53

1.969

2.469

1

1

rusty

TPS-55

2.125

2.5

1

1

rusty

TPS-57

2.281

2.688

1

1

rusty

TPE: Tapered Plug EPDM (Black, Hardness: 45A Temperature: -45° to +250° F)
buyonline-orings

Part#

Small End

Large End

Height

TPE-0

0.016

0.063

0.625

TPE-00

0.02

0.078

0.75

TPE-1

0.031

0.125

0.625

TPE-3

0.063

0.125

0.625

TPE-5S

0.063

0.188

0.625

TPE-50

0.063

0.188

0.75

TPE-6

0.047

0.216

1.5

TPE-7

0.125

0.25

0.75

TPE-8

0.125

0.25

1

TPE-9

0.188

0.344

0.625

TPE-90

0.188

0.344

1

TPE-10

0.25

0.375

0.5

TPE-11

0.25

0.375

0.75

TPE-12

0.25

0.438

1

TPE-K65

0.313

0.5

0.875

TPE-130

0.313

0.562

1.125

TPE-13X

0.313

0.562

1

TPE-13

0.344

0.469

0.813

TPE-15

0.406

0.594

1

TPE-16

0.438

0.625

0.875

TPE-170

0.438

0.687

1

TPE-17

0.5

0.656

1

TPE-19

0.563

0.75

1

TPE-21

0.625

0.781

1

TPE-210

0.625

0.8

0.625

TPE-21X

0.75

0.925

0.75

TPE-23

0.719

0.938

1

TPE-25

0.781

1

1

TPE-27

0.906

1.063

1

TPE-29

0.938

1.1

1

TPE-31

1.031

1.25

1

TPE-33

1.063

1.313

1

TPE-35

1.188

1.438

1

TPE-37

1.25

1.531

1

TPE-39

1.3

1.61

1

TPE-41

1.406

1.688

1

TPE-43

1.469

1.75

1

TPE-45

1.5

1.813

1

TPE-47

1.625

1.969

1

TPE-49

1.75

2.063

1

TPE-51

1.875

2.203

1

TPE-53

1.969

2.469

1

TPE-55

2.125

2.5

1

TPE-57

2.281

2.688

1

TPE-59

2.438

2.953

1.375

TPE-61

3

3.5

1.5

TPE-63

3.25

4

1.5

TPE-65

3.5

5

2

HTPS: Hollow Tapered Silicone Plugs (Hardness: 50A Temperature: -50° to +600° F)

p1-HSTP
cad-hstp-bw

Part Number A(inch) B(inch) C(inch) D(inch) E(inch) Bag Qty Color

HTPS1063-1000

0.906

1.063

1

0.406

0.75

5

light green

HTPS1109-1000

0.959

1.109

1

0.47

0.7

5

pink

HTPS1250-1000

1.031

1.25

1

0.531

0.75

5

green

HTPS1344-1000

1.125

1.344

1

0.6

0.75

5

yellow

HTPS1438-1000

1.187

1.437

1

0.531

0.75

5

blue

HTPS1500-1000

1.187

1.5

1

0.68

0.75

5

white

HTPS1625-1000

1.313

1.625

1

0.813

0.75

5

light blue

HTPS1688-1000

1.406

1.688

1

0.9

0.75

5

pink

HTPS1750-1000

1.469

1.75

1

0.969

0.75

5

red

HTPS1813-1000

1.5

1.813

1

1

0.75

5

green

HTPS1969-1000

1.625

1.969

1

1.125

0.75

5

transparent

HTPS2080-1000

1.75

2.08

1

1.2

0.75

5

yellow

HTPS2203-1000

1.875

2.203

1

1.375

0.75

5

blue

HTPS2469-1000

2

2.469

1

1.25

0.625

1

green

HTPS2500-1000

2.126

2.5

1

1.375

0.625

1

red

HTPS2688-1000

2.281

2.687

1

1.531

0.625

1

light blue

HTPS2953-1375

2.437

2.953

1.375

1.687

1

1

purple

HTPS3228-1500

2.677

3.228

1.5

1.677

1

1

light green

HTPS3500-1500

3

3.5

1.5

2

1

1

white

HTPS4000-1500

3.25

4

1.5

2.25

1

1

rusty red

HTPS5000-1500

3.5

5

2

2.5

1.5

1

transparent

HSWP: Hollow Silicone Washer Plugs (Hardness: 50A Temperature: -50° to +600° F)

p2-hswp
cad-hollowwasherplug-bw

Part Number A(inch) B(inch) C(inch) D(inch) Bag Qty Color

HSWP-0330

0.492

0.248

0.906

0.13

50

transparent

HSWP-0450

0.63

0.335

0.984

0.177

50

black

HSWP-0500

0.65

0.394

1.102

0.197

50

yellow

HSWP-0800

0.748

0.551

1.417

0.315

10

blue

HSWP-1150

0.984

0.689

1.496

0.453

10

purple

HSWP-1350

1.102

0.768

2.008

0.531

10

rusty red

HSWP-1480

1

0.819

1.929

0.583

10

grey

HSWP-1600

1.22

0.866

2.087

0.63

10

transparent

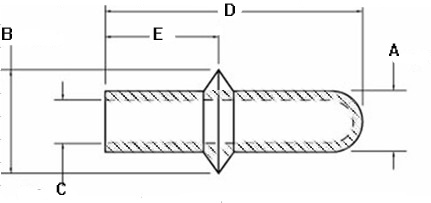

SFP: Silicone Flanged Plugs (Hardness: 50A Temperature: -50° to +600° F)

p3-sfp
cad-sfp-bw

Part Number A(inch) B(inch) C(inch) D(inch) E(inch) Bag Qty Color

SFP-M8

0.291

0.472

0.177

1.654

0.472

50

yellow

SFP-M10

0.343

0.579

0.276

0.185

0.512

50

pink

SFP-M12

0.421

0.622

0.315

2.008

0.551

50

transparent

SFP-M14

0.539

0.709

0.417

2.52

0.591

50

black

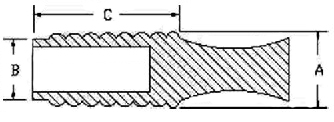

SFLP: Silicone Flangeless Plugs (Hardness: 50A Temperature: -50° to +600° F)

p4-sflp
cad-sflp-bw

Part Number A(inch) B(inch) C(inch) Bag Qty Color

SFLP00250

0.23

0.157

1

10

transparent

SFLP00312

0.315

0.221

1

10

black

SFLP00406

0.38

0.315

1

10

yellow

SFLP00468

0.47

0.38

1

10

transparent

SFLP00562

0.575

0.48

1

10

light blue

SFLP00625

0.63

0.536

1

10

purple

SFLP00718

0.709

0.63

1

10

rusty red

SFLP00787

0.787

0.709

1

10

light green

SFLP00866

0.866

0.787

1

5

grey

SFLP00945

0.945

0.866

1

5

transparent

SFLP01024

1.024

0.945

1

5

black

SFLP01102

1.102

1.024

1

5

green

SFLP01134

1.134

1000

1

5

purple

SFLP01178

1.178

1000

1

5

light blue

SFLP01216

1.216

1000

1

5

rusty red

SFLP01234

1.25

1.125

1

5

yellow

SPH: Silicone Plugs with Handles (Hardness: 50A Temperature: -50° to +600° F)

p5-sph

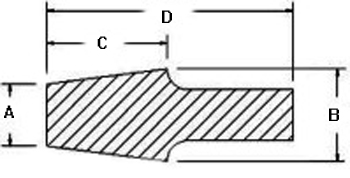

cad-sph-bw

Part Number A(inch) B(inch) C(inch) D(inch) Bag Qty Color

SPH99

0.031

0.125

0.625

1

100

transparent

SPH100

0.063

0.125

0.625

1

100

light green

SPH101

0.063

0.188

0.625

1.13

100

pink

SPH102

0.125

0.25

0.75

1.25

100

black

SPH103

0.188

0.344

0.625

1.13

100

red

SPH104

0.25

0.375

0.75

1.25

100

yellow

SPH105

0.25

0.375

0.5

1

100

white

SPH0

0.5

0.656

1

1.75

10

pink

SPH00

0.406

0.594

1

1.78

10

light green

SPH108

0.438

0.625

0.875

1.625

10

purple

SPH2

0.625

0.781

1

1.759

10

red

SPH3

0.719

0.938

1

1.75

10

yellow

SPH4

0.75

1

1

0

10

transparent

STM: Silicone Thread Mask (Hardness: 50A Temperature: -50° to +600° F)

p8-stm
cad-sthreadmask-bw

Part Number A(inch) B(inch) C(inch) D(inch) Bag Qty Color

STM-M6*1

0.208

0.197

0.551

0.248

100

transparent

STM-M8*1.25

0.283

0.197

0.482

0.331

100

blue

STM-M10*1.5

0.358

0.276

0.63

0.409

100

pink

STM-M12*1.75

0.426

0.346

0.792

0.489

50

rusty red

STM-M16*2

0.583

0.433

0.906

0.654

50

light green

STM-M20*2.5

0.724

0.512

1.122

0.811

50

yellow

STM-1/4-20

0.218

0.2

0.45

0.26

100

yellow

STM-5/16-18

0.278

0.2

0.5

0.32

100

light green

STM-3/8-16

0.336

0.25

0.6

0.385

100

white

STM-7/16-14

0.392

0.35

0.75

0.44

100

pink

STM-1/2-13

0.451

0.35

0.75

0.51

100

transparent

STM-5/16-18LS

0.278

0.2

0

0.32

100

light green

STM-6*1LS

0.208

0.197

0.94

0.248

100

transparent

STM-8*1.25LS

0.283

0.197

0.885

0.331

100

blue

STM-1/4-20LS

0.218

0.2

0

0.26

100

yellow

STM-1/4-36LS

0

0

0

0

100

blue

STM-M4*0.7LS

0

0

0

0

100

pink

STM-M3*0.5LS

0

0

0

0

100

red

STM-M5*0.8LS

0.18

0.228

0.825

0

100

purple

STM-3/8-16LS

0.336

0.25

0

0.385

100

white

STM-M10*1.5LS

0.358

0.276

0.945

0.409

100

pink

STM-3/8-36LS

0

0

0

0

100

yellow

STM-M24*2LS

0

0

0

0

10

grey

STM-5/16-40LS

0

0

0

0

100

rusty red

SWP: Silicone Washer Plugs (Hardness: 50A Temperature: -50° to +600° F)

p9-swp
cad-swp-bw

Part Number A(inch) B(inch) C(inch) D(inch) E(inch) F(inch) Bag Qty Color

SWP-M3

0.276

0.11

0.146

0.22

0.197

0.291

100

green

SWP-M4

0.354

0.142

0.185

0.283

0.197

0.37

100

pink

SWP-M5

0.394

0.177

0.224

0.354

0.197

0.449

50

transparent

SWP-M6

0.492

0.209

0.264

0.417

0.197

0.528

50

red

SWP-M8

0.669

0.28

0.343

0.559

0.197

0.685

50

black

SWP-M10

0.827

0.378

0.421

0.756

0.197

0.843

25

yellow

SWP-M12

0.945

0.429

0.5

0.858

0.197

1

25

transparent

SWP380

0.25

0.096

0.128

0.348

0.197

0.504

50

yellow

SWP400

0.312

0.134

0.157

0.49

0.193

0.502

50

black

SWP405

0.319

0.124

0.252

0.385

0.217

0.511

50

transparent

SWP410

0.38

0.137

0.16

0.454

0.196

0.507

50

pink

SWP412

0.375

0.198

0.274

0.492

0.198

0.5

50

red

SWP415

0.502

0.127

0.186

0.381

0.202

0.497

50

light green

SWP420

0.505

0.244

0.257

0.509

0.193

0.516

50

blue

SWP440

0.625

0.127

0.256

0.358

0.191

0.506

50

yellow

SWPP: Silicone Washer Pull Plugs (Hardness: 50A Temperature: -50° to +600° F)

p10-swpp
cad-swpp-bw

Part Number A(inch) B(inch) C(inch) D(inch) E(inch) F(inch) Bag Qty Color

SWPP-M3

0.394

0.105

0.107

0.39

0.06

0.09

50

blue

SWPP-M4

0.394

0.14

0.107

0.39

0.08

0.12

50

green

SWPP-M5

0.394

0.176

0.107

0.39

0.1

0.15

50

transparent

SWPP-M6

0.591

0.211

0.165

0.39

0.12

0.18

50

white

SWPP-M8

0.591

0.283

0.165

0.39

0.161

0.24

50

grey

SWPP-M10

0.787

0.375

0.21

0.39

0.214

0.32

50

yellow

SWPP-M12

0.787

0.428

0.21

0.39

0.244

0.36

50

pink

SWPP-500

0.5

0.167

0.107

0.39

0.095

0.14

25

pink

SWPP-562

0.562

0.193

0.107

0.39

0.11

0.16

25

yellow

SWPP-625

0.625

0.225

0.107

0.39

0.128

0.19

25

green

SWPP-688

0.688

0.284

0.165

0.39

0.162

0.24

10

transparent

SWPP-812

0.812

0.342

0.165

0.39

0.195

0.29

10

grey

SWPP-922

0.922

0.4

0.21

0.39

0.228

0.34

10

white

SWPP-1060

1.06

0.459

0.21

0.39

0.262

0.39

10

blue

agencies

All materials contained in this website is copyrighted. Copyright 2012 O-Rings, Inc. All rights reserved.  ® Each respective company owns respective trade marks.  By visiting our site, you are accepting our terms of use and legal restrictions
