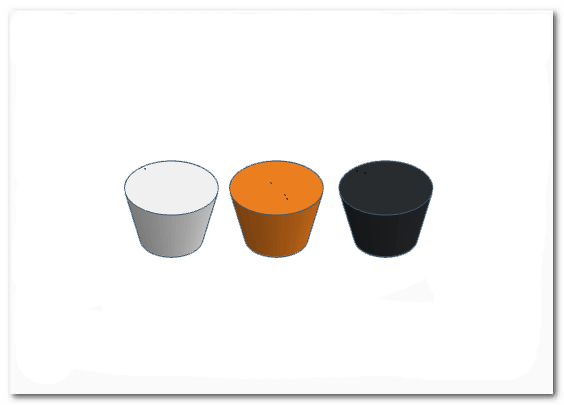

Rubber Stoppers
bar
rubber-stopper

BLACK RUBBER STOPPER
(RS-SBR)

Material:

SBR

Durometer:

40A +/- 5

Temperature Range:

-22 to +212 F

Color:

Black

Configuration:

Solid or Thorugh Hole, Rounded Corners

SILICONE RUBBER STOPPER (RS-SIL)

Material:

Silicone

Durometer:

50A +/- 5

Temperature Range:

-50 to +600 F

Color:

Orange

Configuration:

Solid, FDA, Rounded Corners

PHARMACEUTICAL GRADE
RUBBER STOPPER (RS-CLR)

Material:

Silicone

Durometer:

50A +/- 5

Temperature
 Range:

-50 to +600 F

Color:

Clear or White

Configuration:

Solid, Rounded Corners, USP6 grade raw material, FDA

Part#

Small End

Large End

Height

Description

Bag Qty

RS-SBR-000

 23/64"

 15/32"

 45/64"

000

100

RS-SBR-00

 25/64"

 19/32"

 63/64"

00

50

RS-SBR-0

 33/64"

 43/64"

 63/64"

0

50

RS-SBR-1

 35/64"

 3/4"

 63/64"

1

50

RS-SBR-2

 5/8"

 25/32"

 63/64"

2

50

RS-SBR-3

 23/32"

 15/16"

 63/64"

3

50

RS-SBR-4

 25/32"

1 1/64"

 63/64"

4

20

RS-SBR-5

 29/32"

1 1/16"

 63/64"

5

20

RS-SBR-5 1/2

 15/16"

1 7/64"

 63/64"

5.5

20

RS-SBR-6

1 1/64"

1 1/4"

 63/64"

6

20

RS-SBR-7

1 3/16"

1 29/64"

 63/64"

7

10

RS-SBR-8

1 19/64"

1 39/64"

 63/64"

8

10

RS-SBR-9

1 29/64"

1 49/64"

 63/64"

9

10

RS-SBR-10

1 21/32"

1 31/32"

 63/64"

10

10

RS-SBR-11

1 57/64"

2 13/64"

 63/64"

11

1

RS-SBR-11.5

1 31/32"

2 31/64"

 63/64"

11.5

1

RS-SBR-13

2 9/32"

2 43/64"

 63/64"

13

1

RS-SBR-13.5

2 7/16"

2 61/64"

1 3/8"

13.5

1

RS-SBR-14

2 61/64"

3 35/64"

1 17/32"

14

1

RS-SBR-15

3 17/64"

4 3/64"

1 17/32"

15

1

RS-SBR-16

3 35/64"

5"

1 31/32"

16

1
